Carbon nanotube fiber

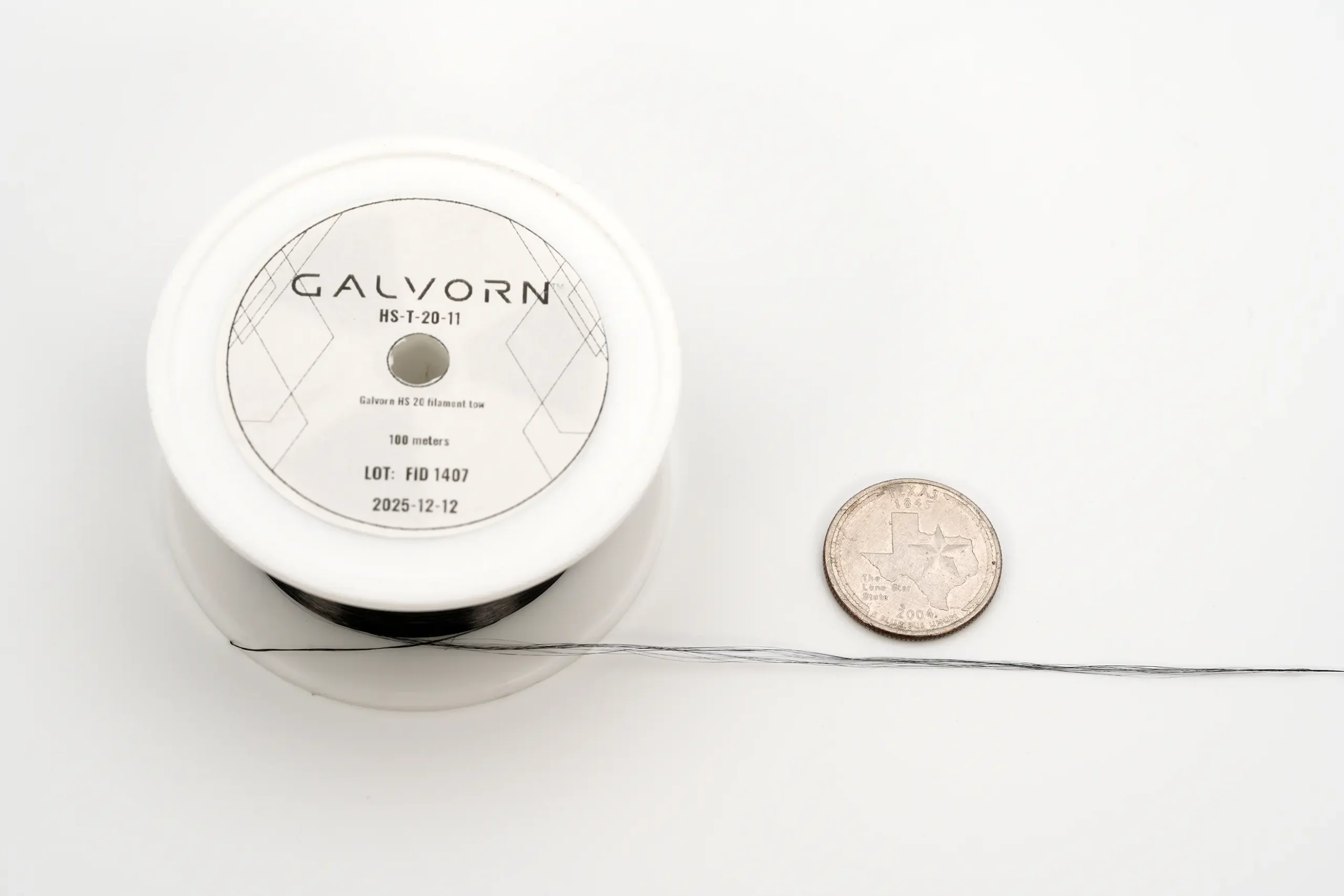

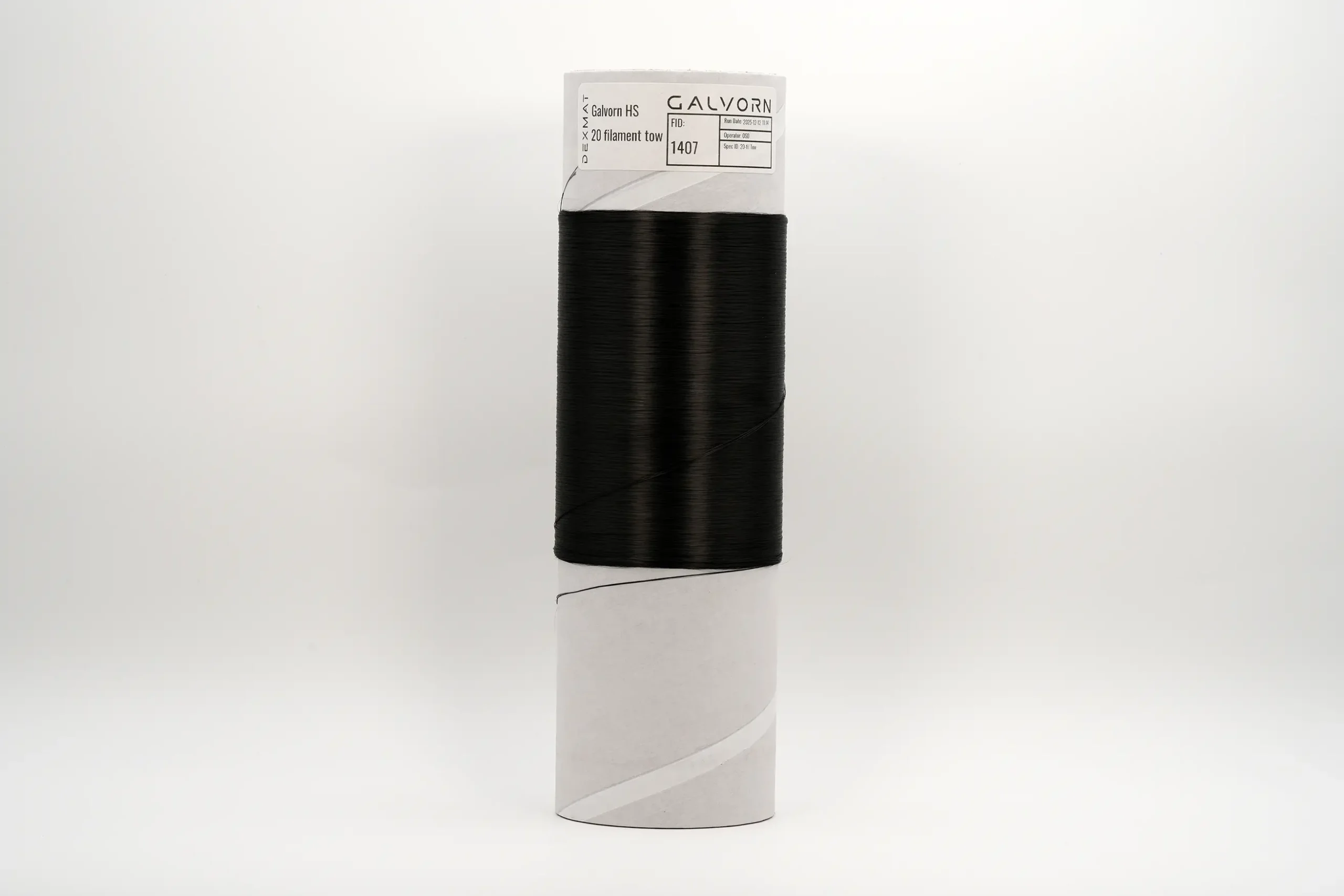

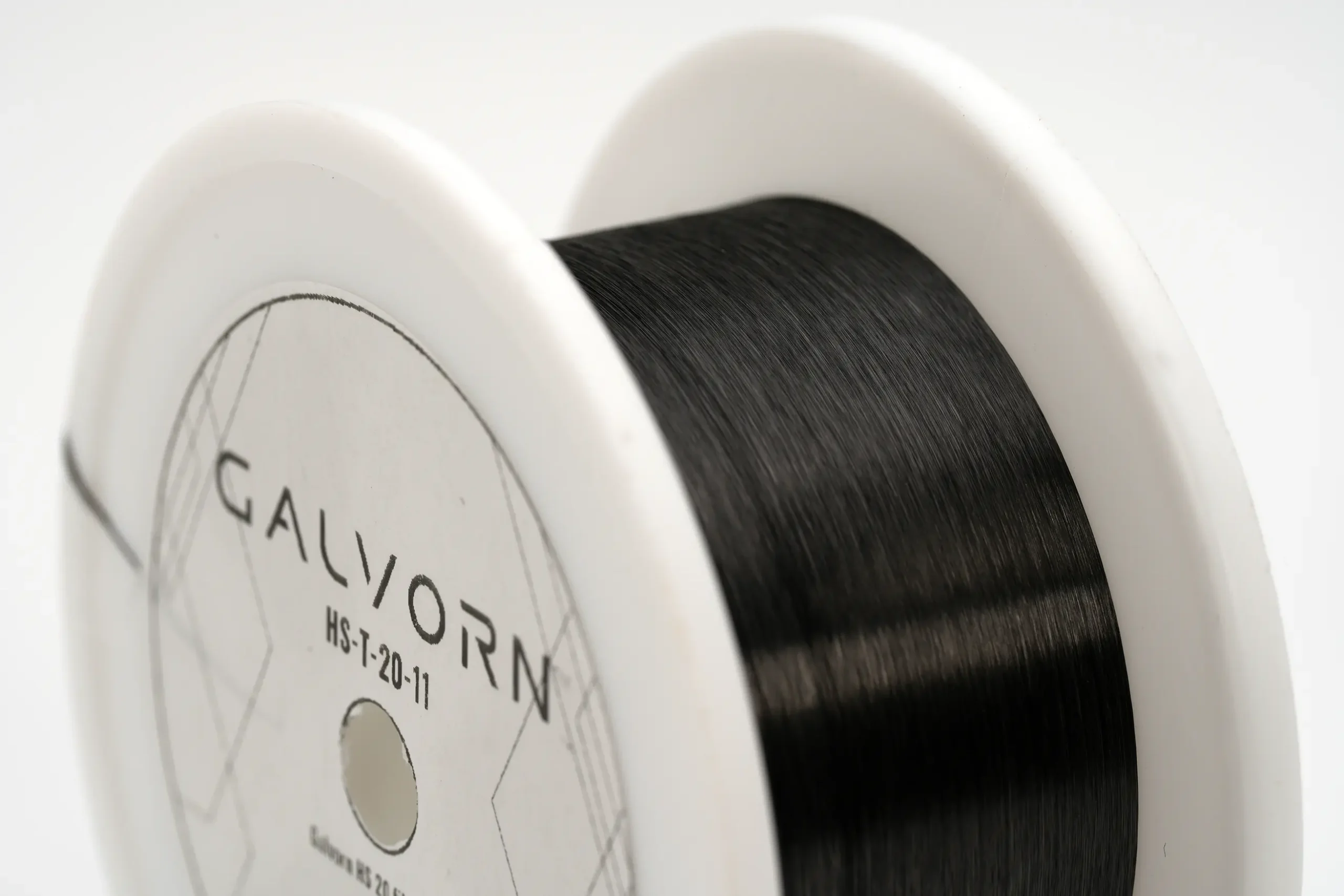

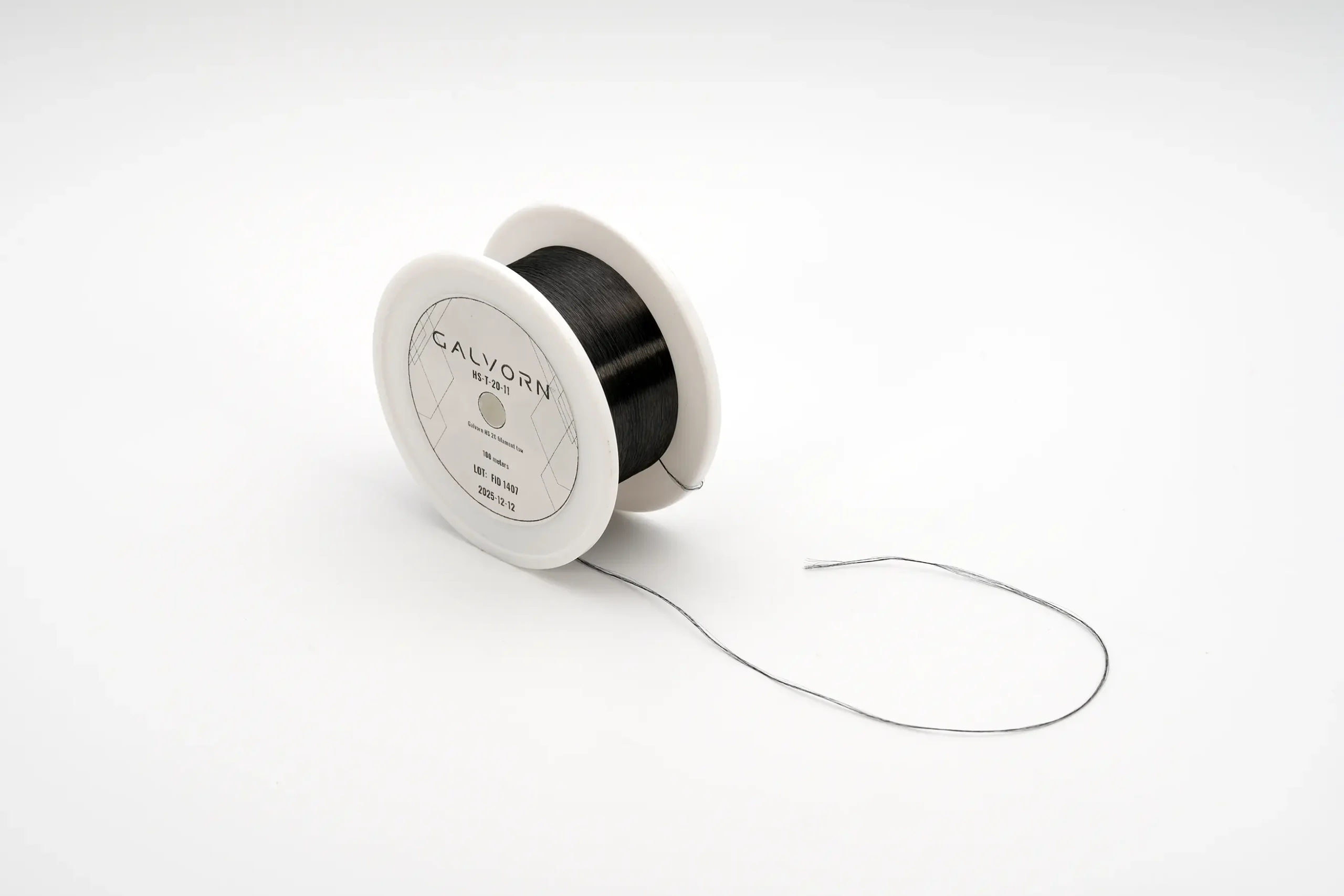

Galvorn® 1000 Fiber Tow

Resistance36 ± 4.0 Ω/m
Tensile strength1.4 ± 0.2 GPa
Linear mass5.5 ± 1.0 mg/m
Break force0.85 ± 0.1 kg

From $11.57 ($2.31/m)

- +

Ships in 1–2 weeks from Houston, Texas. Free shipping within the continental U.S.; $85 flat international.

Need longer lengths?

Volume orders get more favorable pricing.

Overview

Ultra-Lightweight. High-Tenacity. Engineered for Precision and Miniaturization.

Galvorn® 1000 Fiber Tow is the highest-performing carbon nanotube (CNT) fiber commercially available today. While traditional conductors become fragile and prone to breakage as they are scaled down, Galvorn accomplishes the opposite: it leverages extreme tensile strength to enable ultra-thin, high-conductivity fibers for the world’s most delicate and demanding applications.

Comprised of single-filament fibers, this premium grade allows engineers to achieve unprecedented miniaturization without sacrificing durability. Whether you are developing micro-electrodes for neural interfaces, ultra-fine signal wires for weight-critical aerospace sensors, or high-performance smart textiles, Galvorn® 1000 Fiber Tow provides the structural integrity needed to maintain performance at scales where other materials fail.

Key Benefits

Enabled MiniaturizationHigh tenacity allows for ultra-thin diameters that remain durable during manufacturing and use.
Superior Electrical ConductivityThe highest electrical conductivity in the Galvorn lineup.
Superior Thermal ConductivityThe highest thermal conductivity in the Galvorn lineup.
Extreme Fatigue ResistanceWithstands millions of flex cycles at micro-scales without work-hardening or brittle failure.
Thermal & Chemical StabilityDoes not burn or melt; maintains structural precision in extreme environments.
High-Surface AreaPerfectly suited for applications requiring high-surface-area contact in a minimal footprint.
Made in the USAProduced at our headquarters in Houston, Texas.

Specifications

Product Specifications

Properties were measured at 21 ± 2°C and 50 ± 10% relative humidity.

PropertyUnit
Linear massmg/m5.5 ± 1.011 ± 2.0
Densityg/cm31.3 ± 0.21.3 ± 0.2
ResistanceΩ/m36 ± 4.018 ± 3.0
Specific conductivitySm2/kg5000 ± 3005000 ± 300
Break forcekg0.85 ± 0.11.5 ± 0.2
Tensile strengthGPa1.4 ± 0.21.4 ± 0.1
TenacityN/tex1.5 ± 0.21.5 ± 0.2
Elongation%3.0 ± 0.53.0 ± 0.5
Tensile modulusGPa70 ± 560 ± 5

Applications

Who This CNT Fiber Is For

Engineers, researchers, and designers working in:

Aerospace & DefenseEMI shielding and/or high-strength composite reinforcement.
Medical ResearchUltra-fine, flexible electrodes for neural interfaces and cardiac monitoring.
Advanced SensorsHigh-surface-area CNT filaments for chemical and strain sensing.

Testing

Certifications & Testing

BiocompatibilityGalvorn has successfully passed ISO 10993 testing, confirming no detectable cytotoxicity or material-mediated irritation. Results available upon request.
WashabilityResearch confirms that Galvorn maintains high performance and comfort through repeated laundering cycles. Read the Rice study
ABS Quality Evaluations ISO 9001 certification mark, ANAB accredited

ISO 9001:2015 certified quality system

Comparison

How Galvorn® 1000 Fiber Tow Compares

MaterialLow densityStrengthConductivityFlexibilityCorrosion resistance
Galvorn® 1000 Fiber Tow
Copper Wire
Carbon Fiber

Getting Started

Before you begin, check out our Getting Started page for helpful resources.

HandlingTerminationSoldering

Proudly Made in Houston, Texas, U.S.A.

Recyclable with No Loss in Properties

Sustainable Production at Scale

Highest Performing CNT Products

What customers say

  • “We have tested different CNT yarns and in terms of mechanical properties allowing it to withstand mechanical automation, yours are the best. The multifunctionality is key. We can monitor strength, temperature, curing and strength, and can apply heat. With one material you can do many things, this is very attractive to many companies.”

    A Research Institution for Aerospace

  • “It’s amazing. No other material can do what this material does!”

    A Major Global Aerospace Company

  • “Many of our customers were attracted not only to the thermoelectric technology, but also to Galvorn’s unique combination of high-performance properties. We are optimistic about the road ahead with Galvorn, in this first thermoelectric application, but also beyond it. We see the broad market need for a high-performance material like Galvorn that is also good for the environment.”

    Hiroki Iijima, Sales Manager at Tokai Rika

  • “We were able to create a miniaturized, minimally-invasive neuromodulation technology enabled by the high efficiency of charge transfer and high conductivity of Galvorn. Our design makes these types therapies far more accessible for patients living with conditions like epilepsy, depression, and chronic pain.”

    Nicki Driscoll, Cofounder & CTO at NeuroBionics, Inc.
