From $310.00
Galvorn Carbon Nanotube Film
Galvorn carbon nanotube (CNT) film is particularly useful in EMI shielding applications where light weight is critical. The CNT film offers Galvorn’s powerful combination of properties in a thin ribbon-like form.
Readily available in 10 μm thick and 2cm wide, or 10 μm thick and 1 cm wide sizes. Widths up to 4cm are available by special order. We support a variety of lengths, though for orders larger than 25 meters, please contact us to discuss bulk pricing.
Whether you’re ordering meters or kilometers, the DexMat team is ready to support you. Our scalable production process can meet your volume requirements today and into the future. We use high-quality carbon nanotubes (CNTs) and an efficient wet spinning process to achieve superior properties.
Galvorn’s super-power is its combination of strength, conductivity, and light weight in a single super-flexible material. You can find the properties listed below. You can download our specifications sheet for the full range of Galvorn products and properties.
In addition to EMI shielding, this carbon nanotube tape is also suitable for battery and antenna applications. Composite applications can also make use of this form factor, by weaving the film and using it as a pre-preg.
- SHIPPING COST: Calculated at Checkout
- LEAD TIME: Ships within 1-2 weeks
- FREE DOMESTIC SHIPPING: Free shipping within continental US
- DISCOUNT: 30% automatically applied for 25m orders
- NOTE: This pricing is for small batch orders. For production orders please contact us.
As it is an advanced carbon material, Galvorn carbon nanotube films do not burn, melt, or corrode.
Mechanical Properties
|
1 cm wide |
2 cm wide |
| Width (cm) |
1.0 ± 0.1 |
2.0 ± 0.3 |
| Thickness (μm) |
20 ± 5 |
10 ± 5 |
| Linear Mass (g/m) |
0.27 ± 0.04 |
0.4 ± 0.1 |
| Linear Resistance (Ω/m) |
1 ± 0.2 |
0.90 ± 0.15 |
| Conductivity (MS/m) |
5 ± 1 |
4 ± 1 |
| Strength (GPa) |
0.8 ± 0.1 |
0.8 ± 0.1 |
| Tenacity (N/tex) |
0.6 ± 0.1 |
0.7 ± 0.1 |
The demo video below showcases Galvorn CNT film's EMI shielding properties. A 5 cm wide carbon nanotube tape is able to effectively block cell phone signals when wrapped around the phone.

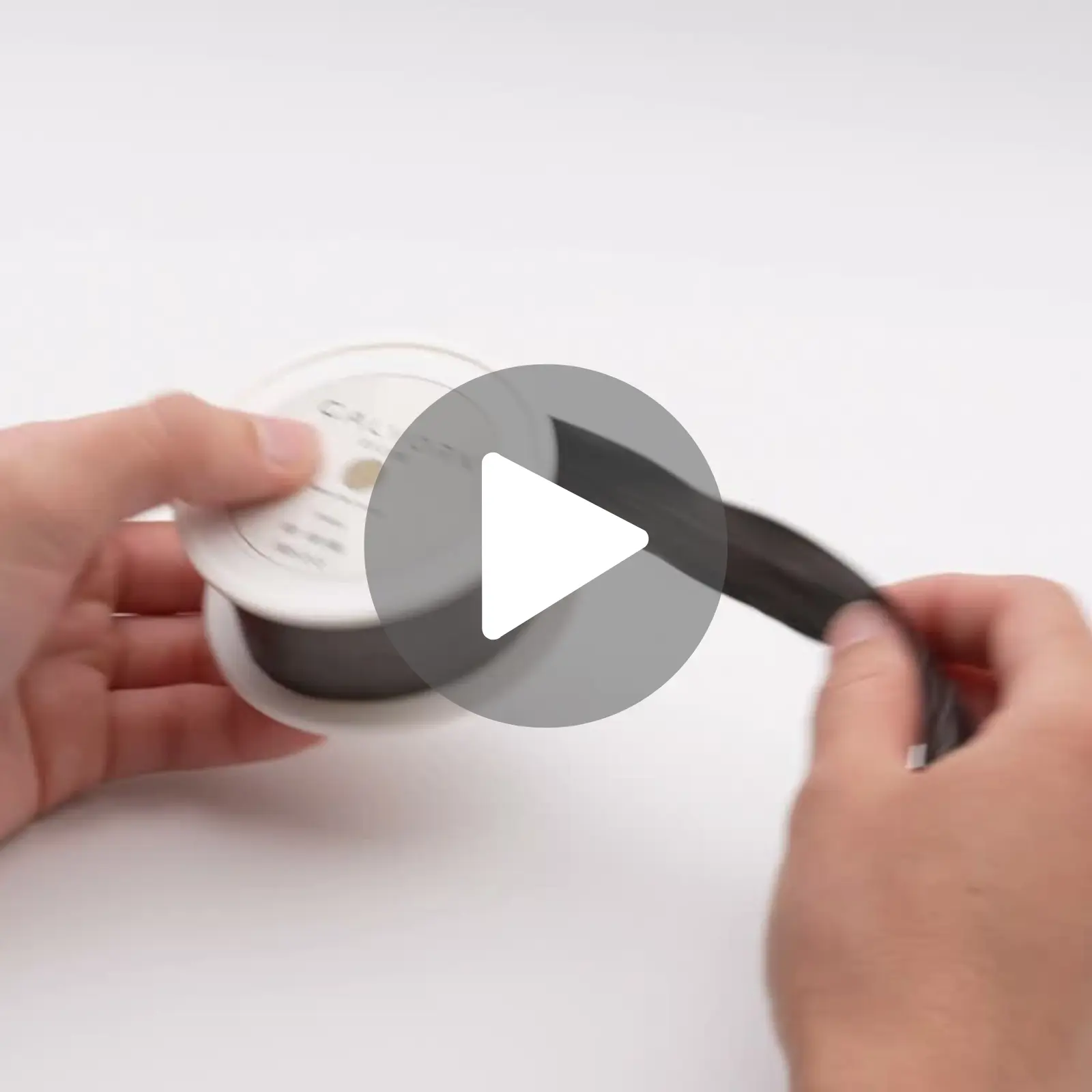

Galvorn CNT film has alignment to it so tearing across that alignment requires a significant amount of strain. However, tearing along the directional alignment it will tear relatively easily. The demo video explains and shows the differences.
